OMAX 2626

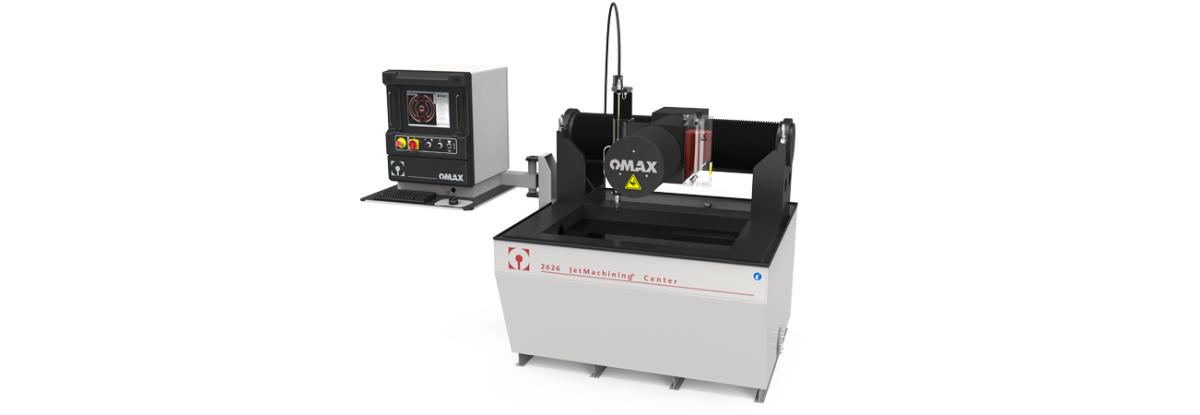

The OMAX 2626 JetMachining® Center has the smallest footprint of our cantilever-style waterjet machines and boasts a cutting tolerance of ±0,025mm.

The OMAX 2626 JetMachining® Center has the smallest footprint of our cantilever-style waterjet machines and boasts a cutting tolerance of ±0,025mm. With a completely sealed and protected Ball Screw Drive System, this robust and reliable workhorse is perfect for shops cutting projects with smaller dimensions but needing high precision. It comes standard with an OMAX MAXJET® 5i Nozzle. Featuring a footprint of just 6' 0" x 9' 8" (1829 mm x 2946 mm), the 2626 is a fit for even the most “space-challenged” shops.

Specifications

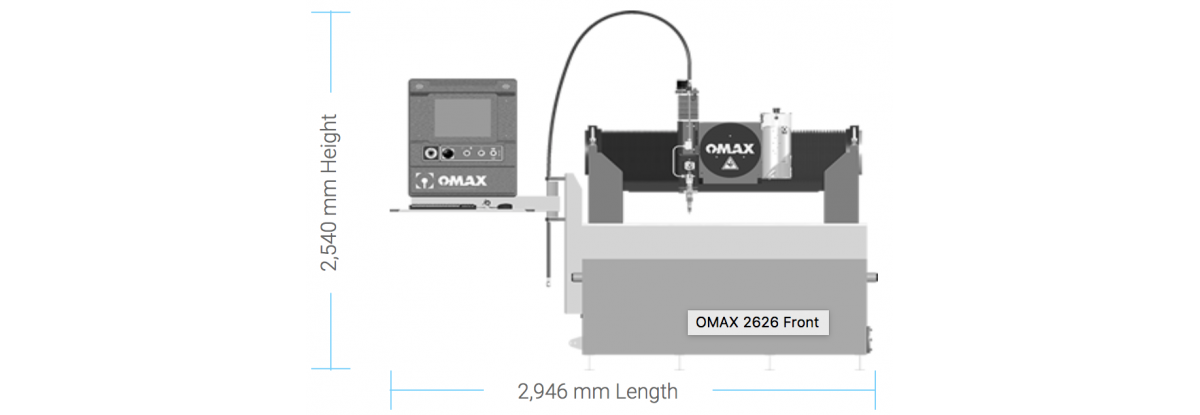

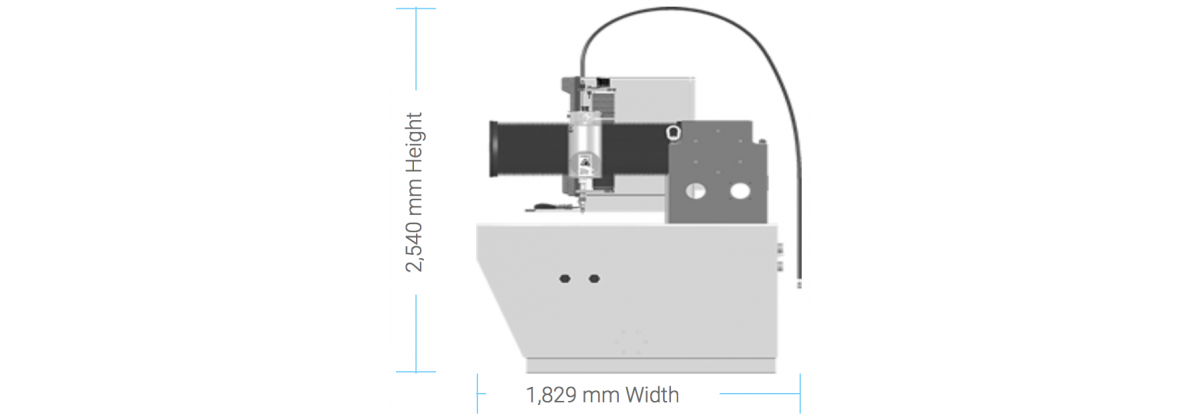

Footprint * – (L x W)2,946 mm x 1,829 mm
Height **2,540 mm
Weight (tank empty)1,361 kg
X-Y Cutting Envelope ***737 mm x 660 mm
Z-Axis Travel ***203 mm
Table Size – (L x W)1,168 mm x 787 mm
Speed4,572 mm/min
Linear Positional Accuracy±0.0254 mm
Repeatability±0.0254 mm

*    Footprint includes controller but not the pump.

**  With standard whip plumbing. Optional scissor plumbing reduces the height.

*** Additional accessories may reduce travel.
