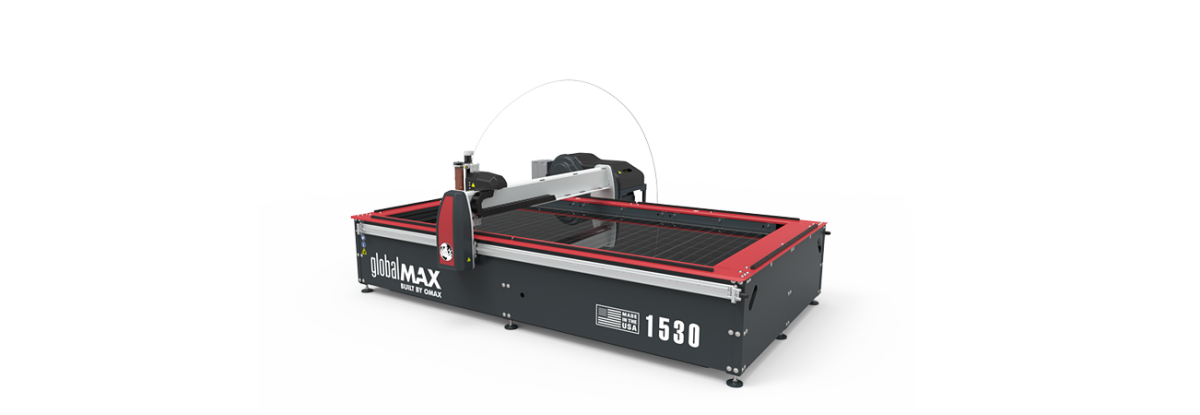

GlobalMAX 1530

The all new GlobalMAX Abrasive Waterjet System raises the bar for what you expect from an essentially featured waterjet. Compact and simple, yet still powerful and versatile, the GlobalMAX was developed, tested, and built in keeping with the OMAX philosophy of reliability and ease of use.

The all new GlobalMAX Abrasive Waterjet System raises the bar for what you expect from an essentially featured waterjet. Compact and simple, yet still powerful and versatile, the GlobalMAX was developed, tested, and built in keeping with the OMAX philosophy of reliability and ease of use. Manufactured alongside our OMAX and MAXIEM JetMachining Centers at the OMAX facility in Kent, Washington, the GlobalMAX utilizes innovations and proven technologies to deliver dynamic performance while operating as ef cient as possible. The GlobalMAX delivers world class waterjet capabilities without compromise to customers in any industry.

Specifications

X-Y Cutting Travel*3,050 mm x 1,530 mm
Table Size*
3,100 mm x 1,645 mm

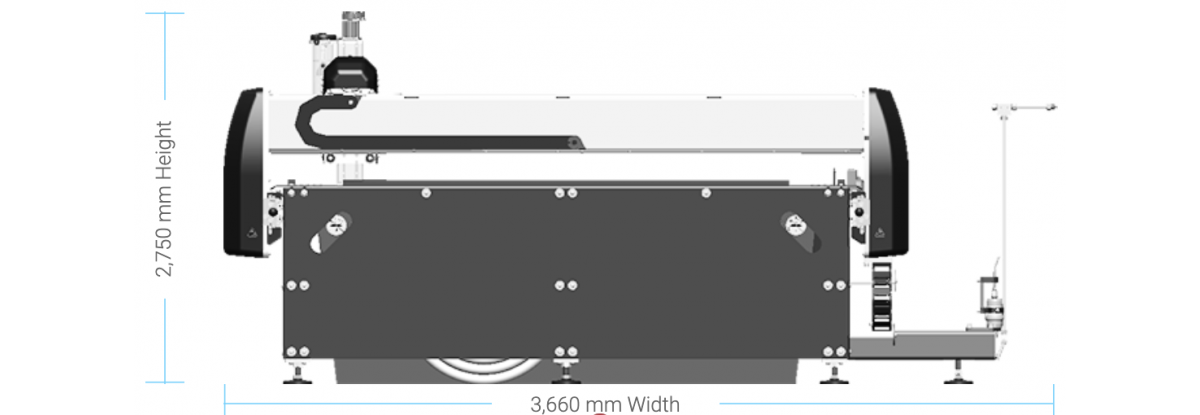

Footprint (without controller)
3,861 mm x 3,660 mm
Weight (tank empty)
1,800 kg
Operating Weight (with water in tank)
7,000 kg
Height (with whip plumbing)
2,750 mm
Maximum Supported Material Load
488 kg/mp
Speed
12,700 mm/min
Ballbar Circularity±0.1778 mm

All products meet rigorous international standards and requirements. Learn more »

* Footprint includes controller but not the pump.

** With standard whip plumbing.

*** Additional accessories may reduce travel.
