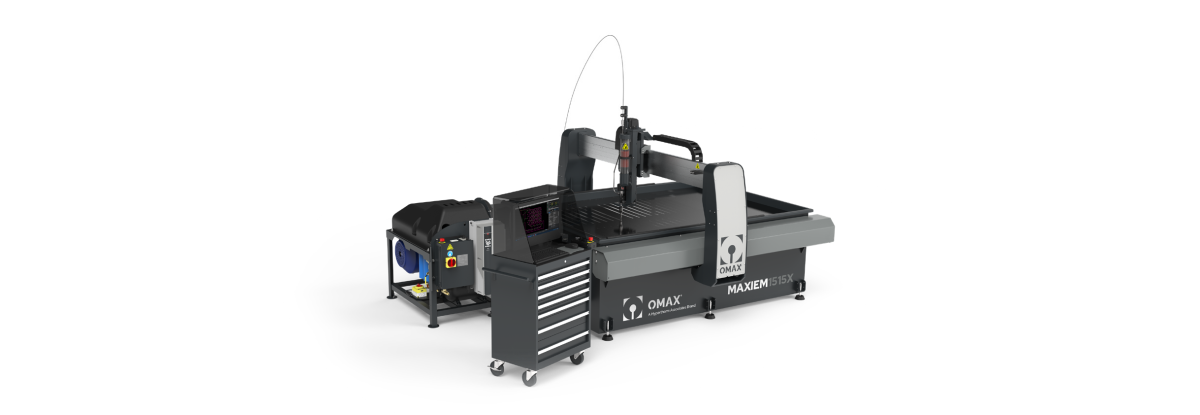

MAXIEM 1515X

The MAXIEM 1515X delivers high performance in a compact package.

The MAXIEM 1515X delivers high performance in a compact package. With an ample cutting area that easily fits up to 5’ x 5’ (1.5 m x 1.5 m) material stock, the 1515 is an excellent fit for fabrication and job shops. The highly efficient MAXIEM Direct Drive Pump delivers the highest nozzle horsepower in the industry for faster, more efficient cutting. The advanced Windows® 10 controller features a large 23” (584 mm) screen for easy viewing of part files and tool paths and comes with the powerful Intelli-MAX® Software Suite ready to use.

Specifications

X-Y Cutting Travel*5’2” x 5’2” (1,575 mm x 1,575 mm)
Table Size*
7’4” x 5’8” (2,248 mm x 1,740 mm)
Footprint (without controller)
4.04 m x 3.78 m
Weight (tank empty)
2,722 kg
Operating Weight (with water in tank)
6,402 kg

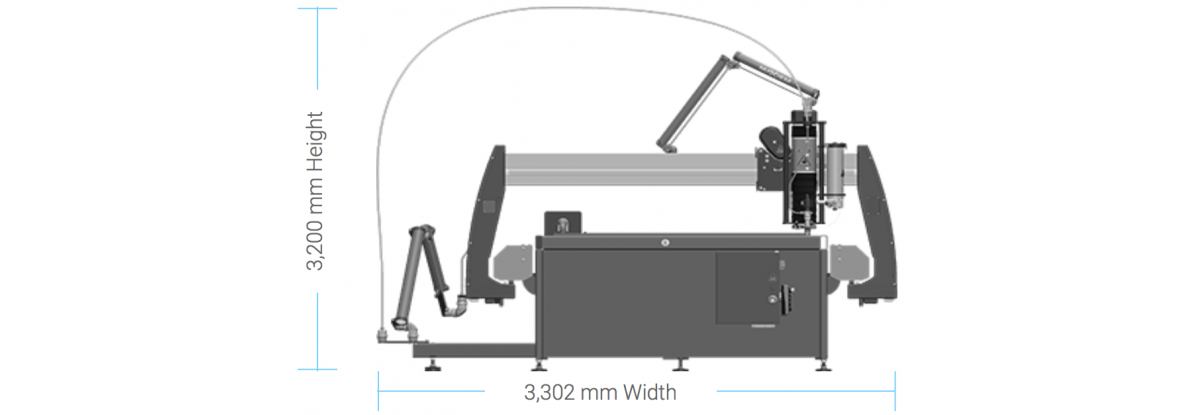

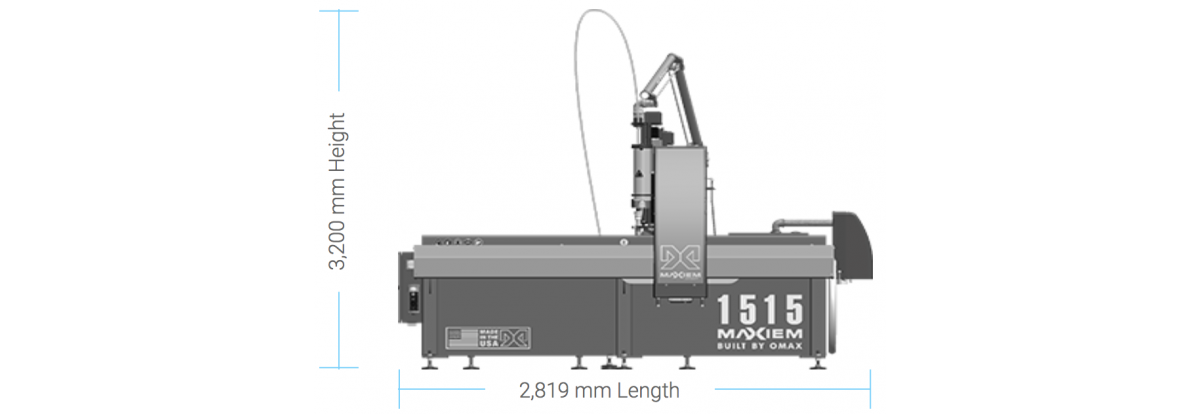

Height (with whip plumbing)
2.95 m
Speed
12,700 mm/min
Linear Positional Accuracy ±0.0762 mm
Repeatability
±0.1270 mm

Standard Features

  • Powered by OMAX IntelliMAX Premium software
  • Powerful all-in-one computer controller with a large 23-inch screen
  • IntelliTRAX drive unit standard, fully enclosed within coated steel housings inside the X-Y axis beams
  • Standard programmable motorized Z-axis with OMAX MAXJET 5i precision nozzle increases productivity and process efficiency
  • Standard rigid scissor-style plumbing
  • IntelliVISOR Mobile puts machine monitoring in your hands, allowing you to review status, receive notifications, and pause operations remotely. Available on iOS and Android.

All products meet rigorous international standards and requirements.

* Footprint includes the pump but not the controller.

** With standard whip plumbing. Optional scissor plumbing reduces the height.

*** Additional accessories may reduce travel.
