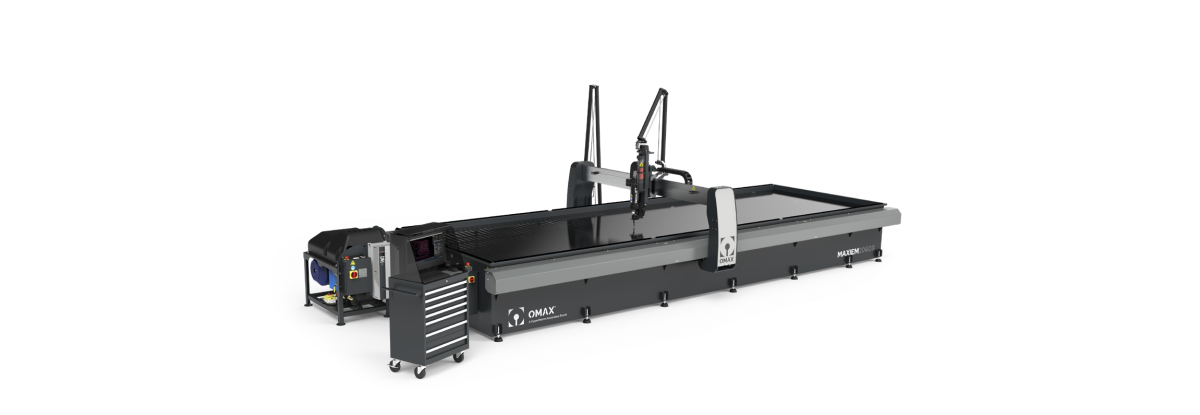

MAXIEM 2060X

Designed for oversized materials and long production runs, the 2060X keeps your workflow moving. Fast, smooth, and accurate, the MAXIEM® JetMachining Center® is ideal for the ambitious shop where new challenges are a permanent driving force.

Fast, smooth, and accurate, the MAXIEM® JetMachining Center® is ideal for the ambitious shop where new challenges are a permanent driving force. The MAXIEM waterjet system was developed, tested, and built in keeping with the OMAX philosophy to deliver superior performance, expanded versatility, and high productivity at an affordable price. Your MAXIEM can become even more individual thanks to a diverse selection of options, yet remains easy to use for any level of operator. However you customize your MAXIEM, remember that there are no limits to its potential.

Specifications

X-Y Cutting Travel*6.24 m x 2.00 m
Table Size*
6.93 m x 2.13 m

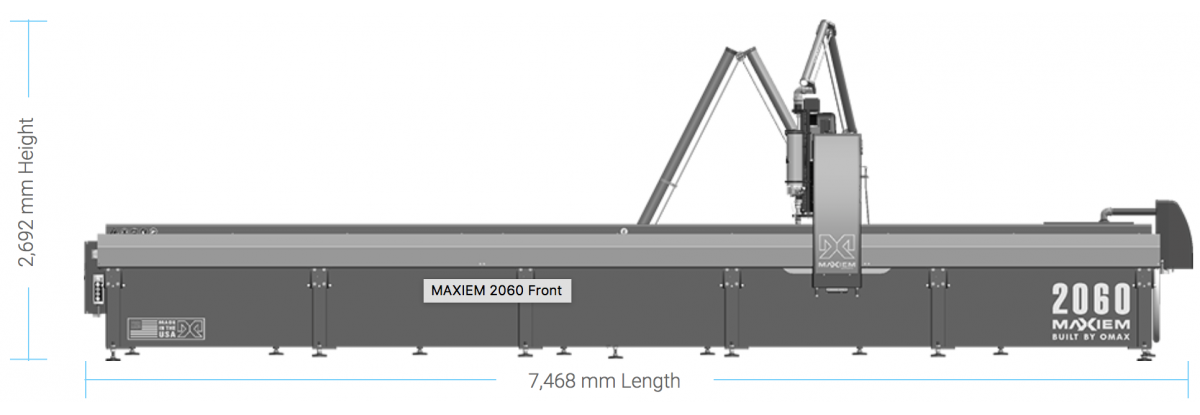

Footprint
8.76 m x 3.94
Weight (tank empty)
4,763 kg
Operating Weight (with water in tank)
17,941 kg

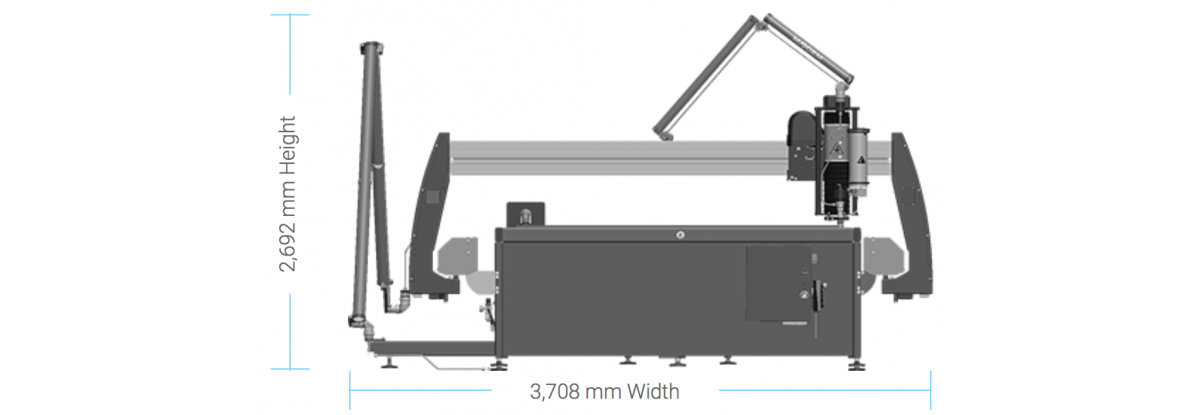

Height (with whip plumbing)
2.69 m
Speed12,700 mm/min
Linear Positional Accuracy±0.076 mm
Repeatability±0.025 mm

Standard Features

  • Powered by OMAX IntelliMAX Premium software
  • Powerful all-in-one computer controller with a large 23-inch screen
  • IntelliTRAX drive unit standard, fully enclosed within coated steel housings inside the X-Y axis beams
  • Standard programmable motorized Z-axis with OMAX MAXJET 5i precision nozzle increases productivity and process efficiency
  • Standard rigid scissor-style plumbing
  • IntelliVISOR Mobile puts machine monitoring in your hands, allowing you to review status, receive notifications, and pause operations remotely. Available on iOS and Android.

All products meet rigorous international standards and requirements.

* Footprint includes controller.

** With standard whip plumbing. Optional scissor plumbing reduces the height.

*** Additional accessories may reduce travel.
