OMAX 160X Series

The OMAX 160X JetMachining Center series is the largest of OMAX machines.

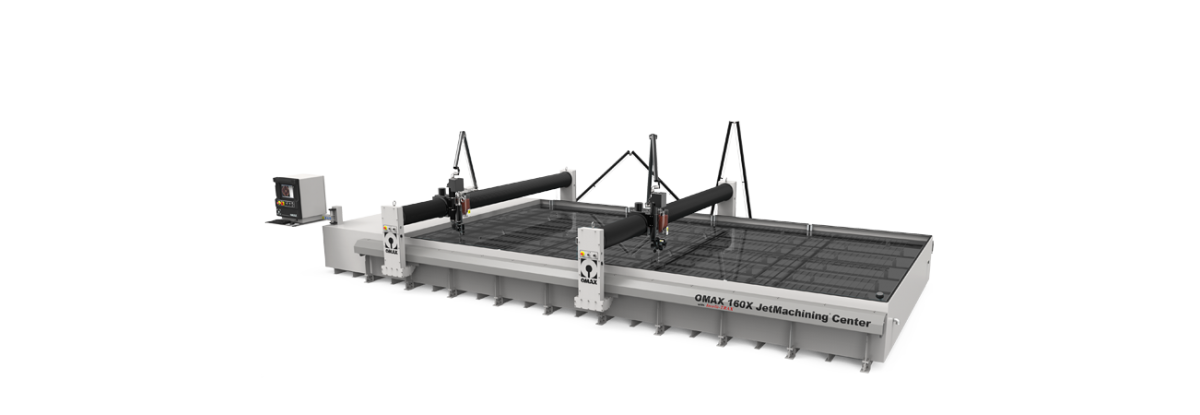

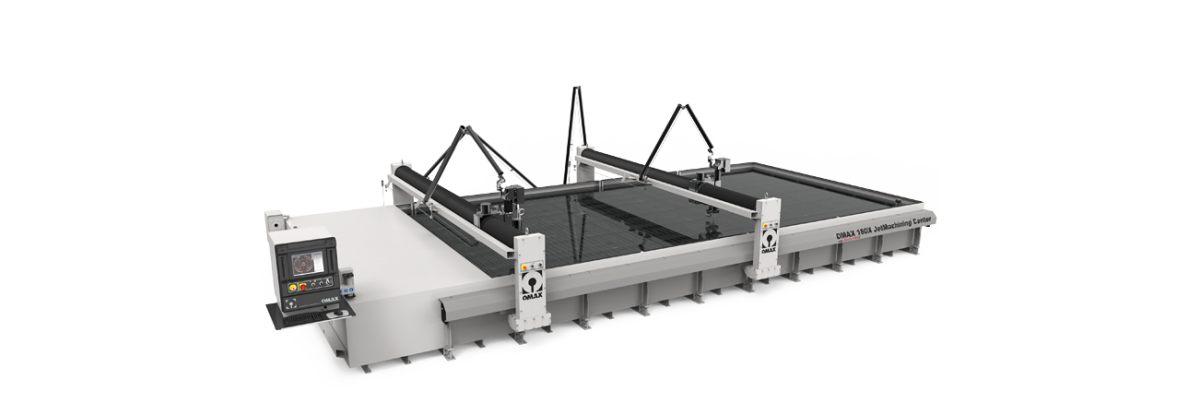

The OMAX 160X JetMachining Center series is the largest of OMAX machines. A bridge-style machine, the OMAX 160X features Intelli-TRAX™, the high-precision linear drive technology designed exclusively for the abrasive waterjet environment. This robust and reliable system maximizes both machine time and profit margins. All 160X models come with the durable, factory-aligned OMAX MAXJET®5i Nozzle and a Bulk Abrasive Delivery System. The OMAX 160X series is ideal for cutting larger or multiple part projects. The 160X series is available in the following sizes: 160XS, 160X, 160X-1, 160X-2 and 160X-3

Specifications

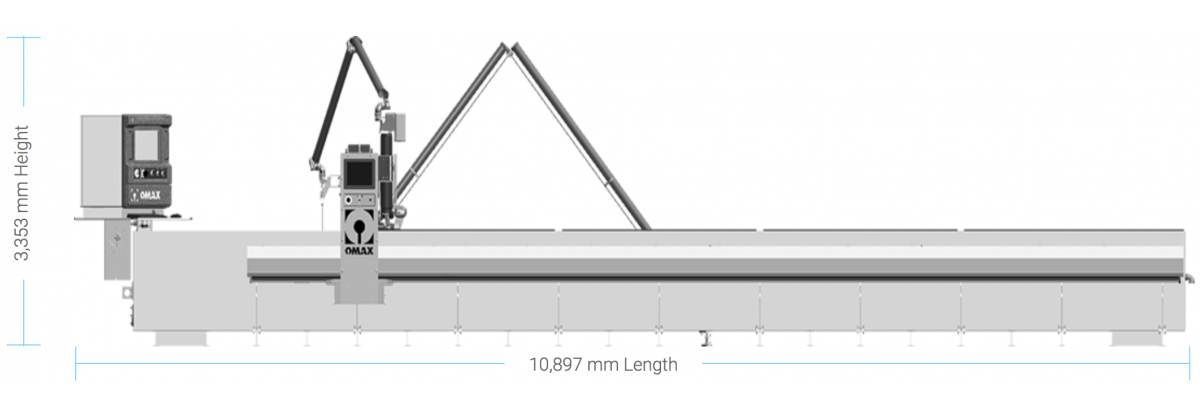

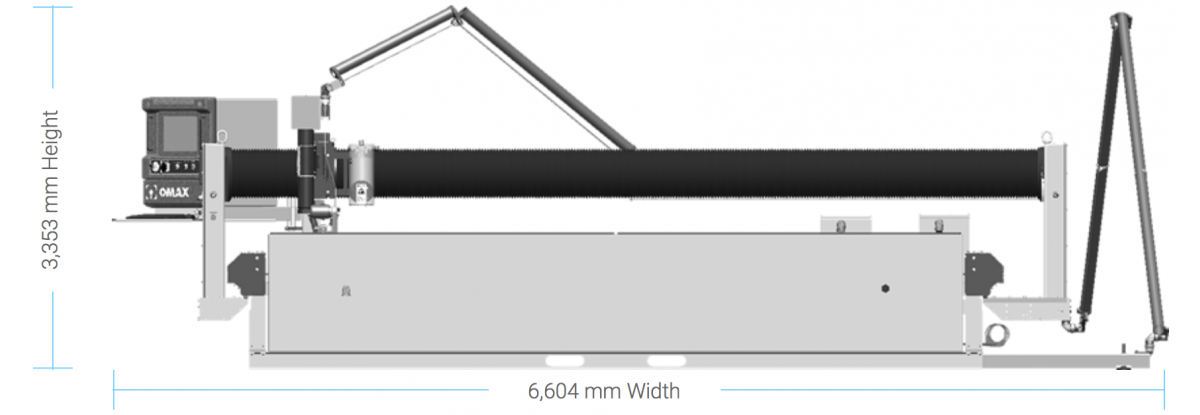

Footprint * – (L x W)10,897 mm x 6,604 mm
Height **3,353 mm
Weight (tank empty)9,525 kg
X-Y Cutting Envelope ***8,128 mm x 4,064 mm
Z-Axis Travel ***203 mm
Table Size – (L x W)8,611 mm x 4,496 mm
Speed8,890 mm/min
Linear Positional Accuracy±0.0254 mm
Repeatability±0.0254 mm

All products meet rigorous international standards and requirements. Learn more »

* Footprint includes controller but not the pump.

** With standard scissor plumbing.

*** Additional accessories may reduce travel.

OMAX 160X/S JetMachining Center

X-Y cutting travel6,096 mm x 4,064 mm
Footprint (with controller)8,940 mm x 6,604 mm
Table Size6,579 mm x 4,496 mm

OMAX 160X JetMachining Center

X-Y cutting travel8,128 mm x 4,064 mm
Footprint (with controller)10,688 mm x 6,858 mm
Table size8,611 mm x 4,496 mm

OMAX 160X-1 JetMachining Center

X-Y cutting travel10,160 mm x 4,064 mm
Footprint (with controller)12,700 mm x 6,858 mm
Table size10,643 mm x 4,496 mm

OMAX 160X-2 JetMachining Center

X-Y cutting travel12,192 mm x 4,064 mm
Footprint (with controller)14,859 mm x 6,858 mm
Table size12,751 mm x 4,496 mm

OMAX 160X-3 JetMachining Center

X-Y cutting travel14,224 mm x 4,064 mm
Footprint (with controller)16,764 mm x 6,858 mm
Table size14,783 mm x 4,496 mm
