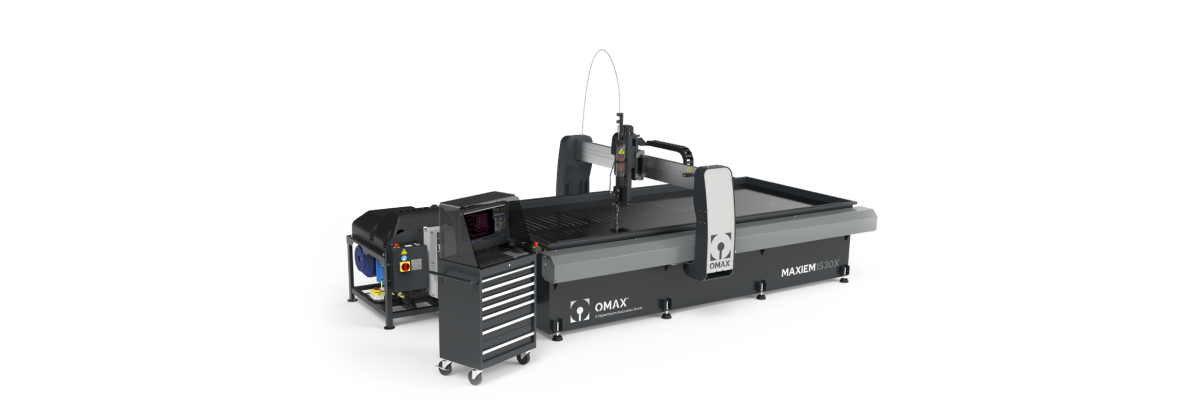

MAXIEM 1530X

Designed for a wide range of machining needs, the MAXIEM 1530X sets a higher standard for precision abrasive waterjet machining.

Designed for a wide range of machining needs, the MAXIEM 1530X sets a higher standard for precision abrasive waterjet machining. The rigid tank design is scaled to handle common plate sizes with room to spare. The advanced linear motion system uses, digital linear encoders to provide instant micron-level cutting head position feedback to the Windows® controller to assure accurate part production. Equipped with a diamond-integrated MAXJET 5i nozzle, the 1530 can cut virtually any material quickly and efficiently, maximizing profitability.

Specifications

X-Y Cutting Travel*3,040 mm x 1,575 mm
Table Size*
12’2” x 5’8” (3,708 mm x 1,740 mm)
Footprint
5.61 m x 4.14 m
Weight (tank empty)
3,175 kg
Operating Weight (with water in tank)
9,067 kg

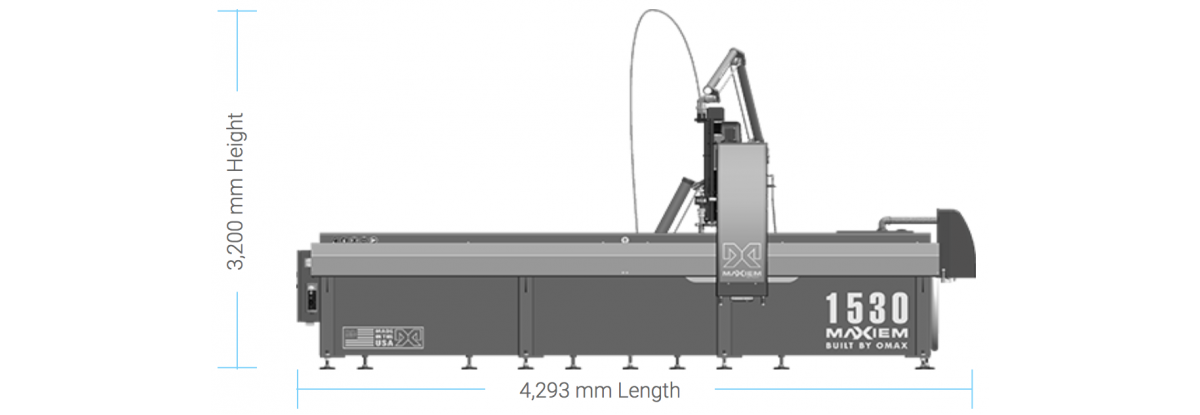

Height (with whip plumbing)
10’6” (3,200 mm)
Speed
12,700 mm/min
Linear Positional Accuracy±0.076 mm
Repeatability±0.025 mm

Standard Features

  • Powered by OMAX IntelliMAX Premium software
  • Powerful all-in-one computer controller with a large 23-inch screen
  • IntelliTRAX drive unit standard, fully enclosed within coated steel housings inside the X-Y axis beams
  • Standard programmable motorized Z-axis with OMAX MAXJET 5i precision nozzle increases productivity and process efficiency
  • Standard rigid scissor-style plumbing
  • IntelliVISOR Mobile puts machine monitoring in your hands, allowing you to review status, receive notifications, and pause operations remotely. Available on iOS and Android.

All products meet rigorous international standards and requirements.

* Footprint includes controller but not the pump.

** With standard whip plumbing. Optional scissor plumbing reduces the height.

*** Additional accessories may reduce travel.
