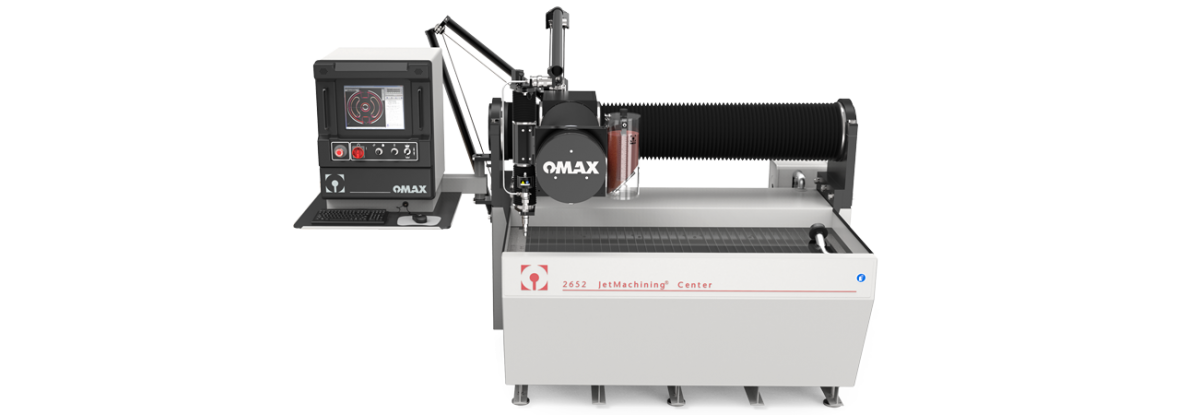

OMAX 2652

The OMAX 2652 JetMachining® Center is slightly larger than the OMAX 2626, but still offers a small footprint for space-challenged shops.

The OMAX 2652 JetMachining® Center is slightly larger than the OMAX 2626, but still offers a small footprint for space-challenged shops. The OMAX 2652 is a mid-sized cantilever-style machine. It has as a standard feature the OMAX MAXJET® 5i Nozzle and boasts a cutting tolerance of ±0.025 mm. With a completely sealed and protected Ball Screw Drive System, this robust and reliable workhorse is perfect for shops cutting projects with smaller dimensions but needing high precision.

Specifications

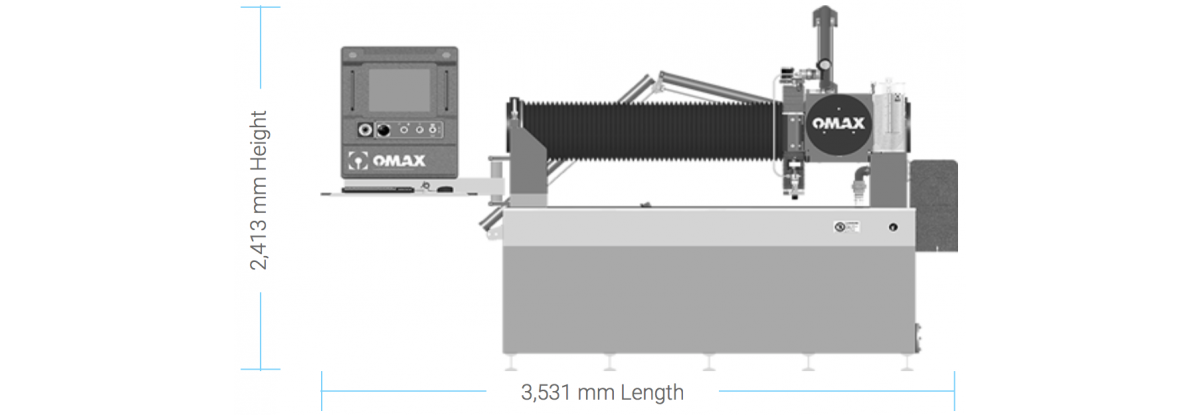

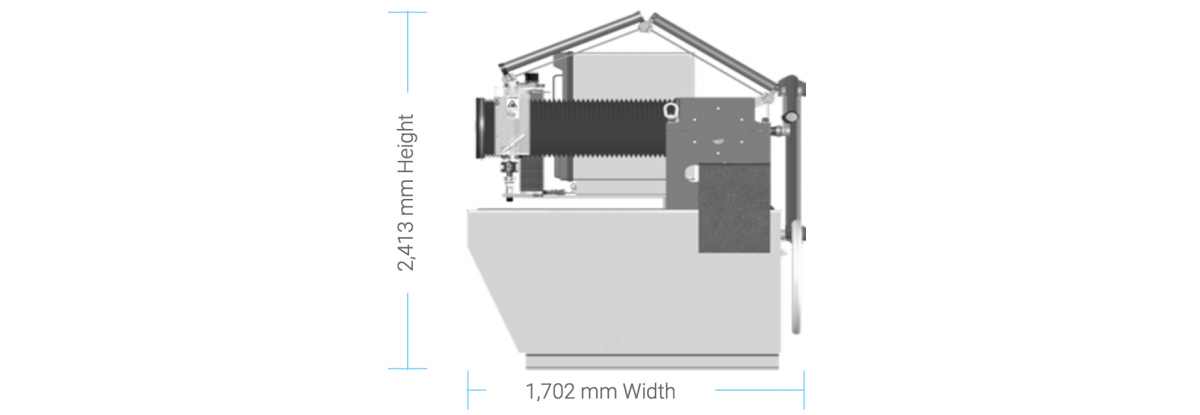

Footprint * – (L x W)3,531 mm x 1,702 mm
Height **2,413 mm
Weight (tank empty)1,506 kg
X-Y Cutting Envelope ***1,321 mm x 660 mm
Z-Axis Travel ***203 mm
Table Size – (L x W)1,753 mm x 762 mm
Speed4,572 mm/min
Linear Positional Accuracy±0.0254 mm
Repeatability±0.0254 mm

*    Footprint includes controller but not the pump.

**  With standard whip plumbing. Optional scissor plumbing reduces the height.

*** Additional accessories may reduce travel.
