OMAX 60120

The OMAX 60120 JetMachining® Center is the smallest of our bridge-style waterjet machines, but it has a table big enough for larger stock.
OMAX 60120 was replaced by OptiMAX 60X

The OMAX 60120 JetMachining® Center is the smallest of our bridge-style waterjet machines, but it has a table big enough for larger stock. The OMAX 60120 features Intelli-TRAX®, the high-precision linear drive technology designed exclusively for the abrasive waterjet environment, and it comes standard with a Bulk Abrasive Delivery System plus the durable OMAX MAXJET®5i Nozzle. This robust and reliable system requires little maintenance and is as easy to use as conventional machine tools. If your shop needs unobstructed material loading, the bridge-style Y-axis is the answer. The 60120 rapidly and precisely gets the job done, maximizing both machine time and profit margins.

Specifications

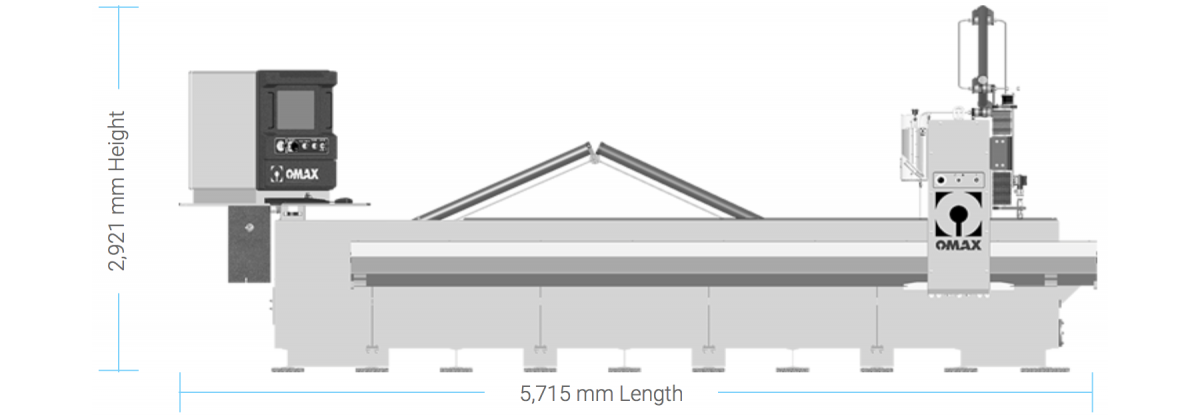

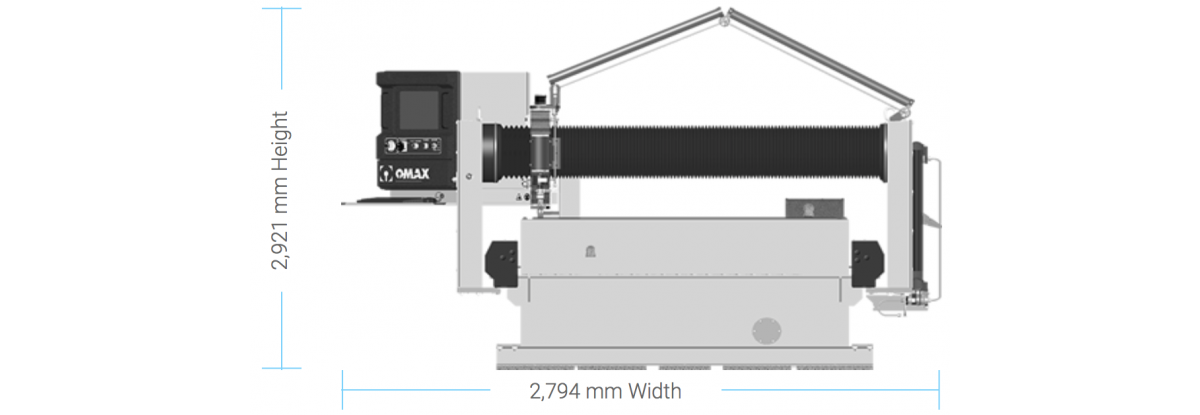

Footprint * – (L x W)5,715 mm x 2,794 mm
Height **2,921 mm
Weight (tank empty)2,812 kg
X-Y Cutting Envelope ***3,200 mm x 1,575 mm
Z-Axis Travel ***203 mm
Table Size – (L x W)3,658 mm x 1,956 mm
Speed4,572 mm/min
Linear Positional Accuracy±0.0254 mm
Repeatability±0.0254 mm

*    Footprint includes controller but not the pump.

**  With standard whip plumbing. Optional scissor plumbing reduces the height.

*** Additional accessories may reduce travel.
