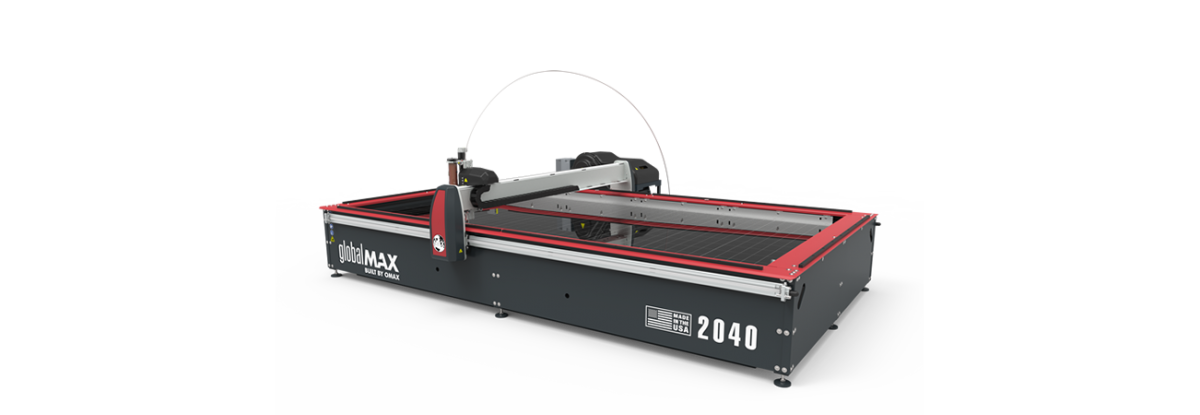

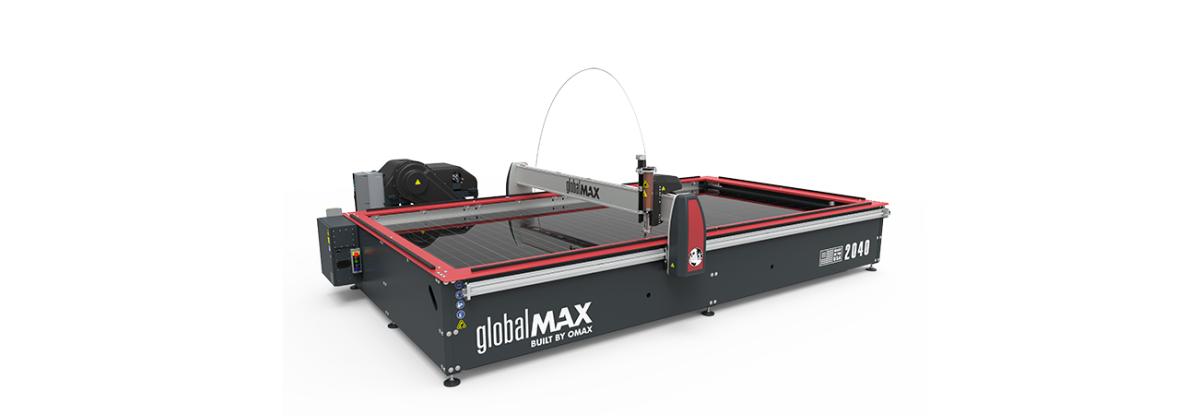

GlobalMAX 2040

The all new GlobalMAX 2040 JetMachining Center raises the bar for what you expect from an essentially featured waterjet. Compact and simple, yet still powerful and versatile, the GlobalMAX 2040 was developed, tested, and built in keeping with the OMAX philosophy of reliability and ease of use.

The all new GlobalMAX 2040 JetMachining Center raises the bar for what you expect from an essentially featured waterjet. Compact and simple, yet still powerful and versatile, the GlobalMAX 2040 was developed, tested, and built in keeping with the OMAX philosophy of reliability and ease of use. Manufactured alongside our OMAX and MAXIEM JetMachining Centers at the OMAX facility in Kent, Washington, the GlobalMAX 2040 utilizes innovations and proven technologies to deliver dynamic performance while operating as ef cient as possible. The GlobalMAX 2040 delivers world class waterjet capabilities without compromise to customers in any industry.

Specifications

X-Y Cutting Travel*4,038 mm x 2,032 mm
Table Size*
4,140 mm x 2,146 mm

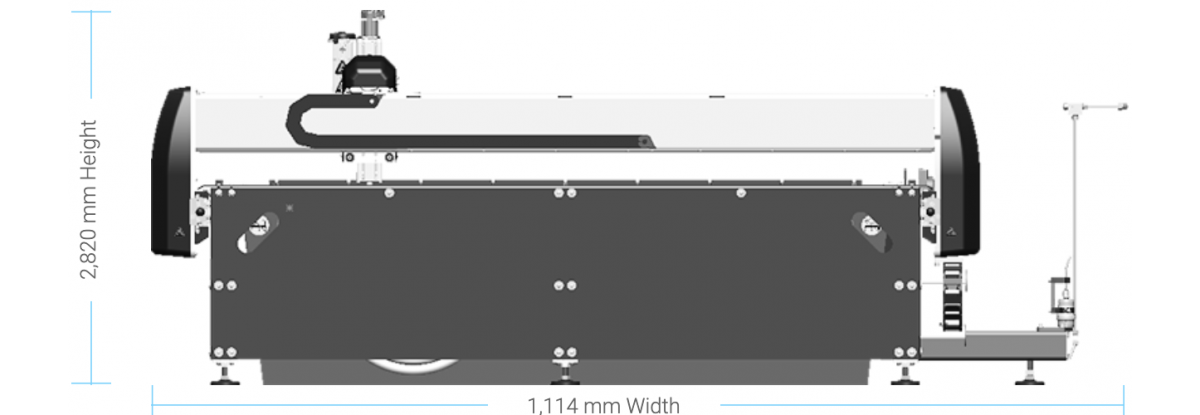

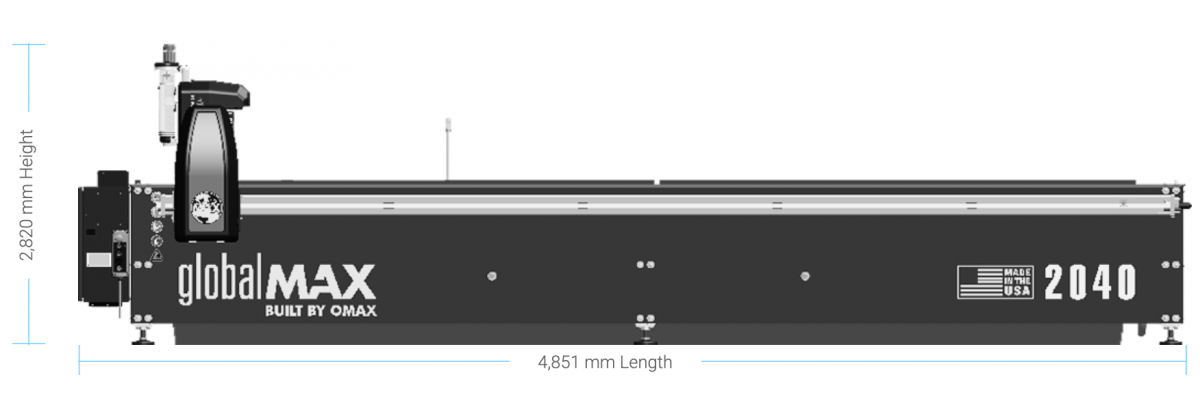

Footprint (without controller)
4.851 m x 4.114 m
Weight (tank empty)
2,903 kg
Operating Weight (with water in tank)
7,921 kg
Height (with whip plumbing)
2,820 mm
Maximum Supported Material Load
488 kg/mp
Speed12,700 mm/min
Ballbar Circularity±0.1778 mm

All products meet rigorous international standards and requirements. Learn more »

* Footprint includes controller but not the pump.

** With standard whip plumbing.

*** Additional accessories may reduce travel.
