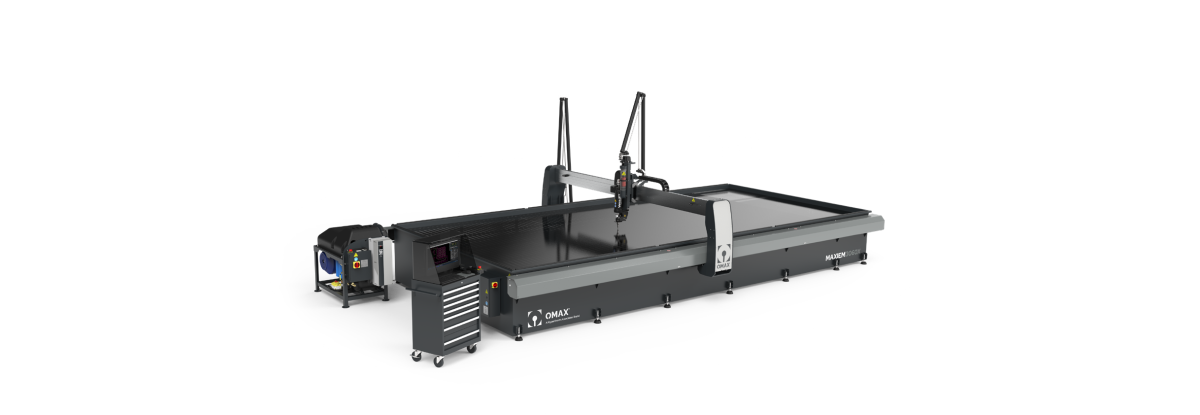

MAXIEM 3060X

The next generation MAXIEM® 3060X JetMachining® Center sets a new standard for abrasive waterjet machining. Faster, smoother, and more precise, the MAXIEM 3060X is ideal for a wide range of modern large format machining needs.

The next generation MAXIEM® 3060X JetMachining® Center sets a new standard for abrasive waterjet machining. Faster, smoother, and more precise, the MAXIEM 3060X is ideal for a wide range of modern large format machining needs. The exclusive advanced Intelli-TRAX® digital linear encoder provides one-micron resolution instant feedback to the motor control system so the machine knows precisely where the cutting head is at all times. The mobile control station with widescreen display provides flexibility in controller positioning. Optional accessories such as the VERSA-Jet® for 5-axis cutting and taper compensation, Intelli-VISOR EX for expanded system monitoring, and DualPUMP options that provide up to 80 hp of power expand your JetMachining capabilities and dramatically improve production.

Specifications

X-Y Cutting Travel*6.24 m x 3.09 m
Table Size*
6.93 m x 3.25 m
Footprint
8.69 m x 5.03 m
Weight (tank empty)
11,793 kg
Operating Weight (with water in tank)
31,799 kg
Height
2.69 m
Speed12,700 mm/min
Linear Positional Accuracy±0.076 mm
Repeatability±0.025 mm

Standard Features

  • Powered by OMAX IntelliMAX Premium software
  • Powerful all-in-one computer controller with a large 23-inch screen
  • IntelliTRAX drive unit standard, fully enclosed within coated steel housings inside the X-Y axis beams
  • Standard programmable motorized Z-axis with OMAX MAXJET 5i precision nozzle increases productivity and process efficiency
  • Standard rigid scissor-style plumbing
  • IntelliVISOR Mobile puts machine monitoring in your hands, allowing you to review status, receive notifications, and pause operations remotely. Available on iOS and Android.

All products meet rigorous international standards and requirements.

* Footprint includes controller.

** With standard whip plumbing. Optional scissor plumbing reduces the height.

*** Additional accessories may reduce travel.
