OMAX 120X Series

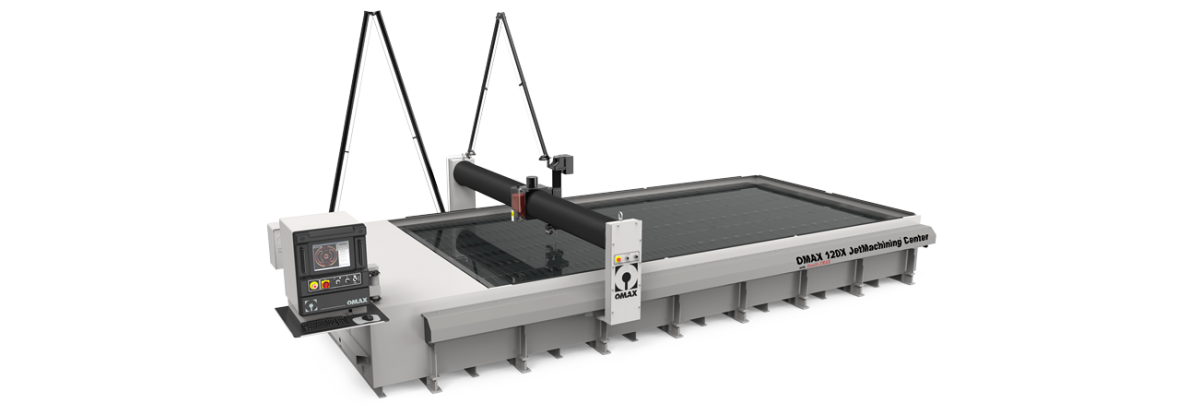

The OMAX 120X JetMachining Center Series is one of the largest OMAX bridge-style machines.

The OMAX 120X JetMachining Center Series is one of the largest OMAX bridge-style machines. The OMAX 120X features the high precision Intelli-TRAX® linear drive technology designed exclusively for the abrasive waterjet environment. This robust and reliable system maximizes production and profitability. The large cutting area of the 120X makes it ideal for multiple part projects or large-scale part production.

Specifications

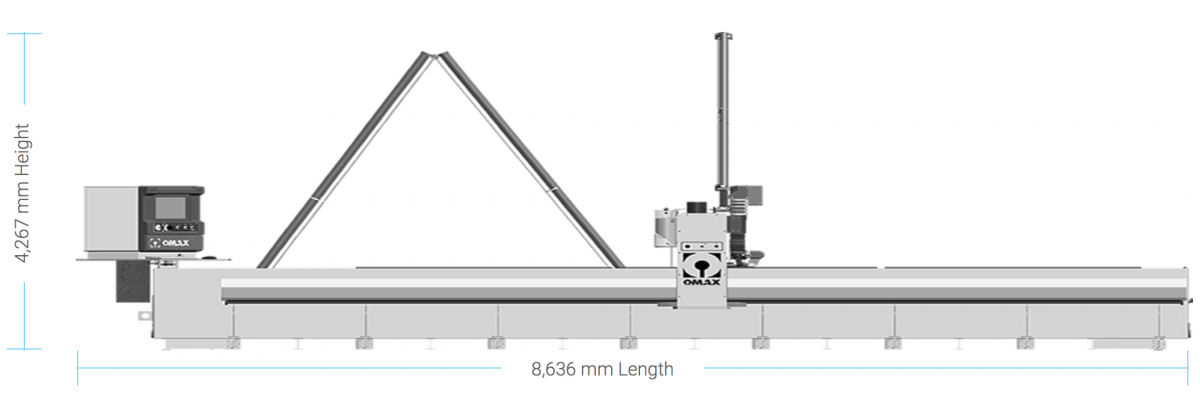

Footprint * – (L x W)8,636 mm x 5,258 mm
Height **4,267 mm
Weight (tank empty)5,443 kg
X-Y Cutting Envelope ***6,096 mm x 3,048 mm
Z-Axis Travel ***203 mm
Table Size – (L x W)4,547 mm x 3,480 mm
Speed4,572 mm/min
Linear Positional Accuracy±0.0254 mm
Repeatability±0.0254 mm

*    Footprint includes controller but not the pump.

**  With standard whip plumbing. Optional scissor plumbing reduces the height.

*** Additional accessories may reduce travel.

OMAX 120X/S JetMachining Center

X-Y cutting travel4,064 mm x 3,048 mm
Footprint (with controller)6,604 mm x 5,258 mm

OMAX 120X JetMachining Center

X-Y cutting travel6,096 mm x 3,048 mm
Footprint (with controller)8,636 mm x 5,258 mm

OMAX 120X-1 JetMachining Center

X-Y cutting travel8,128 mm x 3,048 mm
Footprint (with controller)10,668 mm x 5,842 mm

OMAX 120X-2 JetMachining Center

X-Y cutting travel10,160 mm x 3,048 mm
Footprint (with controller)12,700 mm x 5,842 mm

OMAX 120X-3 JetMachining Center

X-Y cutting travel12,192 mm x 3,048 mm
Footprint (with controller)14,859 mm x 5,842 mm
