Rotary Axis

The Rotary Axis is a robust, waterproof rotary head that allows the waterjet to cut XYZ paths to create complex 3D parts.

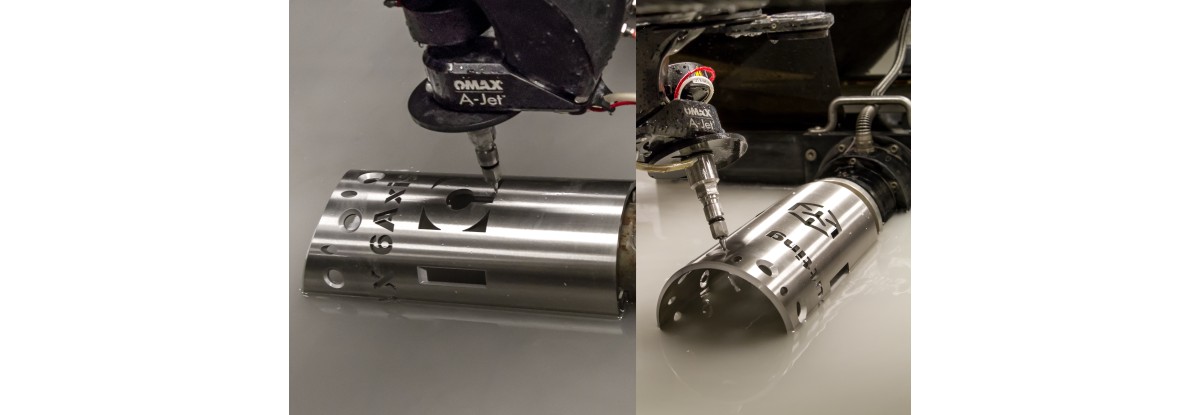

The Rotary Axis is a robust, water resistant submersible rotary head that allows the abrasive waterjet to cut 6-axis* paths to create complex 3D shapes in tube, pipe, and bar stock. Constant rotational control allows for continuous cutting around a shape. Advanced software features in the Intelli-MAX Software Suite grant the ability to cut complex shapes and angles when used in conjunction with the A-Jet articulated cutting head. Precision indexed rotations offer accurate cutting of multi-faceted shapes and other geometric-shaped materials. The Rotary Axis can be mounted on any OMAX JetMachining® Center, significantly expanding the cutting capabilities.

*6-axis cutting requires A-Jet or Tilt-A-Jet

Benefits & Features

  • Fully submersible rotary head
  • Multiple mounting features on output shaft including external and internal threads, flanges, and locating shoulders
  • Powered by OMAX common table control
  • Flexible positioning of the mounting and supports
  • Easy maintenance with external grease fittings
  • Built-in water drip sensor, warning lights, and shutdown
  • Incremental or coordinated continuous rotation
  • Rapid height adjustment wheel on High Torque Rotary Axis
  • Provides the ability for submerged cutting, leading to a cleaner and quieter process
  • Robust standard ACME and metric threads allow customers to adapt custom work holding fixtures
  • Can be relocated at various positions of the table, permitting sheet cutting and rotary cutting without removing the rotary head
  • Combines precision of abrasive waterjet and rotary head technologies
  • Opens up more design capabilities
  • No heat-affected zones when cutting metal materials

OPTIONS

  • STANDARD ROTARY AXIS - 11 ft-lb (15N*m) constant torque
  • HIGH TORQUE ROTARY AXIS - 190 ft-lb (258N*m) constant torque

REQUIREMENTS

  • 9-Axis controller back panel design for installation
  • OMAX Intelli-MAX 18 Software Suite or later
  • Universal Adapter Flange Blank
  • Rotary Alignment Kit
  • Rotary Chuck Assembly
